Electricity board project in Cyprus(in Mar 2008)

Time: 2008-05-17 │ Click:

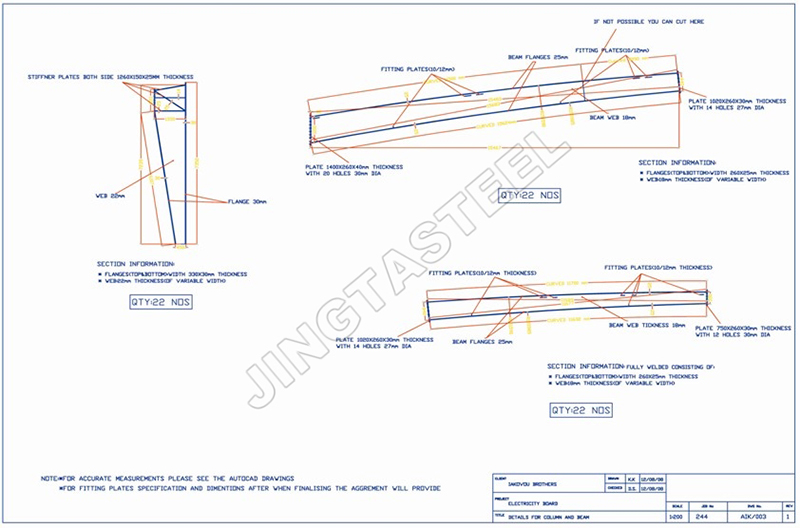

pan of main beam: 54meters. (The main beam is divided into four parts)
Total height: 9.7meters
Height of column: 7.2 meters.
The maximum thickness of welds: 26mm.
Non-destructive inspection type: Ultrasonic test.
The steel grade: Q345B.
Total weight: 203.775MT.
Production period: 40 days.
Delivery date: 3/20/2008.
Descaling type: SA2.5 shot blasting.
Painting: Epoxy zinc phosphate, 75 microns, in gray.

Fabrication standard: GB50205-2001.
